25-30m/s Heavy Duty Industrial Air Curtain Fan with 220V/380V Power Supply and 2000-5000CFM Air Volume for Factory Warehouse

Product Categories
Guangzhou Theodoor Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

25-30m/s Heavy Duty Industrial Air Curtain Fan with 220V/380V Power Supply and 2000-5000CFM Air Volume for Factory Warehouse

Place of Origin : China

Brand Name : Theodoor

Model Number : FM-6009A

Certification : CCC

MOQ : 10

Price : $199

Blade Material : Cast Iron

Fan Material : Aluminum

Cover Material : Galvanized Steel

Voltage : 220V/380V

Air Velocity : 25-30m/s

Air Volume : 2000-5000CFM

Fan Type : Centrifugal

Motor Power : 950-3700W

Noise Level : 66-74dB

Frequency : 50Hz

Dimensions : 900-2000mm x 306mm x 352mm

Mounting Type : Wall Fan

Core Components : Motor

Air Outlet : Large

Structure : Square Reinforced

Contact Now

Product Description

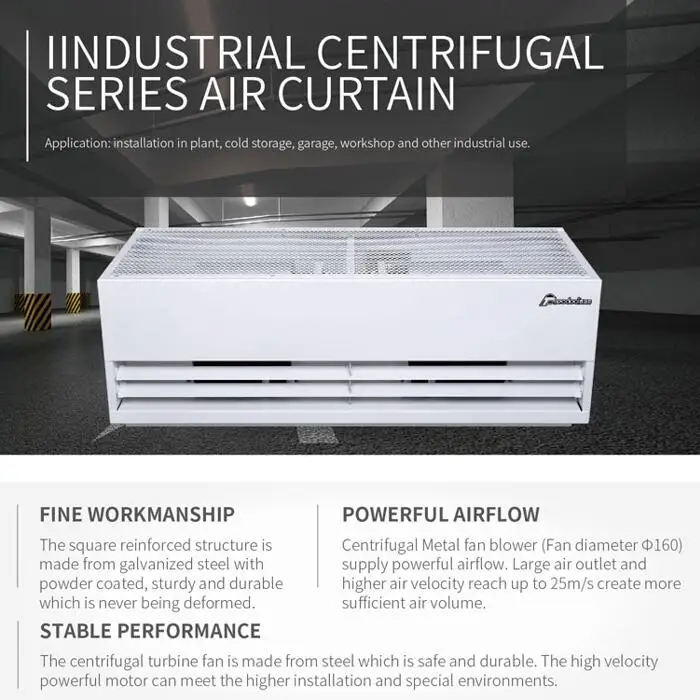

25-30m/s Heavy Duty Industrial Air Curtain For Storage Room/ Factory Warehouse

Fine workmanship

The square reinforced structure is made from galvanized steel with powder coated, sturdy and durable which is never being deformed.

Powerful airflow

Centrifugal Metal fan blower supply powerful airflow. Large air outlet and higher air velocity reach up to 30m/s create more sufficient air volume.

Stable performance

The centrifugal turbine fan is made from steel which is safe and durable. The high velocity powerful motor can meet the higher installation and special environments.

Extra wind force Air Curtain for special situations.

Application: installation in plant, cold storage, garage, workshop and other industrial use.

Specifications:

Model

Dimension
(mm)

Frquency
(Hz)

Voltage
(V~)

Motor power
H / L

Air volume
H / L

Air velocity
H / L

(dB)
Noise

FM-6009A

900*306*352

50

220

950

3760/3000

25/20

66

FM-6010A

1000*306*352

50

220

1000

4150/3300

25/20

66

FM-6012A

1200*306*352

50

220

1550

5640/4510

25/20

69

FM-6015A

1500*306*352

50

220

1950

7520/6010

25/20

70

FM-6018A

1800*306*352

50

220

2000

8500/6800

25/20

70

FM-6020A

2000*306*352

50

220

2400

9400/7520

25/20

72

FM-6009A

900*306*352

50

380

950

3760

25

66

FM-6010A

1000*306*352

50

380

1000

4150

25

66

FM-6012A

1200*306*352

50

380

1550

5640

25

69

FM-6015A

1500*306*352

50

380

1950

7520

25

70

FM-6018A

1800*306*352

50

380

2000

8500

25

70

FM-6020A

2000*306*352

50

380

2400

9400

25

72

FM-6509A

900*306*352

50

380

1400

4510

30

70
FM-6510A 1000*306*352 50 380 1450 4950 30 70

FM-6512A

1200*306*352

50

380

2300

6760

30

71

FM-6515A

1500*306*352

50

380

2800

9000

30

72

FM-6518A

 1800*306*352 50 380 2900 10000 30 73

FM-6520A

2000*306*352

50

380

3700

11200

30

74

25-30m/s Heavy Duty Industrial Air Curtain Fan with 220V/380V Power Supply and 2000-5000CFM Air Volume for Factory Warehouse

25-30m/s Heavy Duty Industrial Air Curtain Fan with 220V/380V Power Supply and 2000-5000CFM Air Volume for Factory Warehouse

25-30m/s Heavy Duty Industrial Air Curtain Fan with 220V/380V Power Supply and 2000-5000CFM Air Volume for Factory Warehouse

25-30m/s Heavy Duty Industrial Air Curtain Fan with 220V/380V Power Supply and 2000-5000CFM Air Volume for Factory Warehouse

25-30m/s Heavy Duty Industrial Air Curtain Fan with 220V/380V Power Supply and 2000-5000CFM Air Volume for Factory Warehouse

25-30m/s Heavy Duty Industrial Air Curtain Fan with 220V/380V Power Supply and 2000-5000CFM Air Volume for Factory Warehouse

Company Information

25-30m/s Heavy Duty Industrial Air Curtain Fan with 220V/380V Power Supply and 2000-5000CFM Air Volume for Factory Warehouse

FAQ

What's the main functions of Air Curtain?

1. Dust-proof, insect prevention

2. Isolate the smell

3. Energy saving

4. Comfortable heating

How to select suitable air curtain?

There are many factors that we have to consider when selecting an air curtain, some of which are listed below:

1. Application

2. Door height

3. Door width

4. Outside wind

5. Building static pressure

6. Door structure

7. Ambient temperature

8. Air curtain size

9. Air curtain design and look

10. Noise level

11. Power consumption
