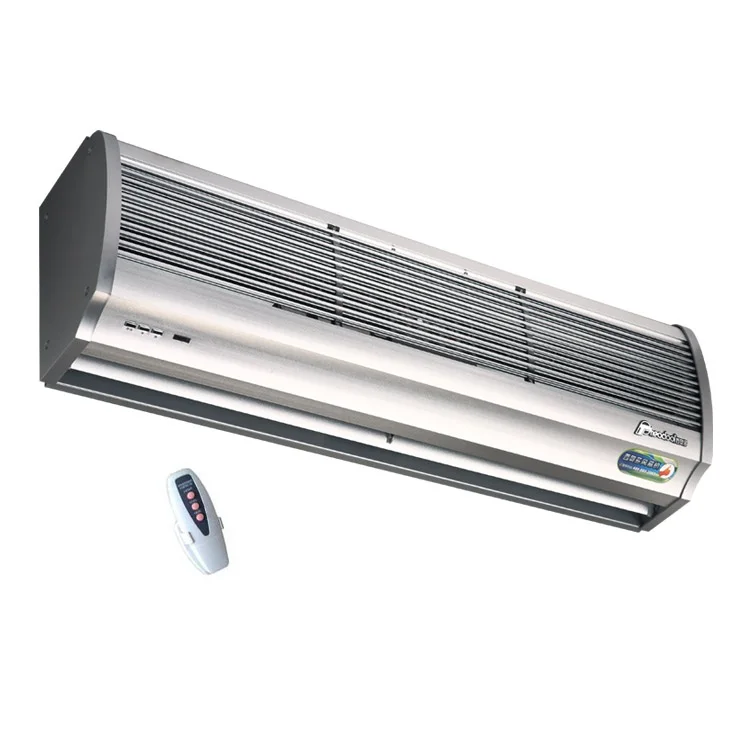

Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control

Name: Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control
Brand: Theodoor
Price: 199 USD

China Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control wholesale

Place of Origin : Guangdong, China

Brand Name : Theodoor

MOQ : 100

Price : $199

Mounting Type : Wall / Window Mount

Weight : 15 kg

Fan Motors Type : AC

Available Length : 60cm,90cm,100cm,120cm,150cm,180cm,200cm

Heat Power : 3kw, 4kw, 5kw, 6kw, 8kw, 10kw, 12kw

Voltage/Frequency : 220v or 380v /50Hz

Heating Element : PTC heater

Control : Remote+buttom

Cover Materials : Aluminum

Motor Power : <160W, <200W, <230W, <300W

Air Speed : 8.5-9.5 M/S

Air Volume : 1200 m3/h, 1700 m3/h, 2200 m3/h, 2700 m3/h

Noise Level : 57 dB, 58 dB, 59 dB, 60 dB

Product Size : 900x190x260 mm, 1200x190x260 mm, 1500x190x260 mm, 1800x190x260 mm

Heater Power : 6/4/2 KW, 8/5/3 KW, 10/7/3 KW, 12/8/4 KW

Contact Now

Theodoor heating air curtain- the invisible air door which maintaining clean and warm air for the indoor environment.

-5G Series Air Heat Curtain The Hot Air Barrier For Door with PTC Ceramic Heater

Product Description

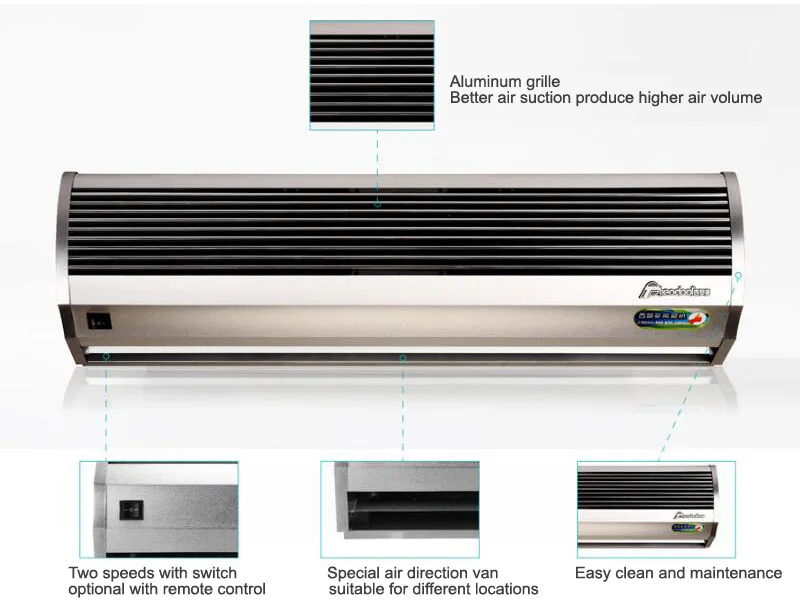

Products feature:

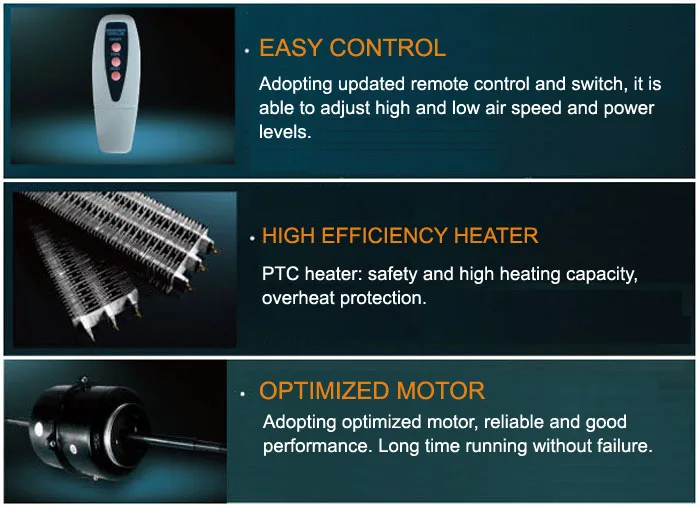

1. PTC Heater- Safety operation and high power output. Creates different temperature Air barriers, which effectively prevents cold airflow and ensure comfortable heating inside the door.

2. Two types of airflow- provide heating or normal air. Creates a temperature differentiating air barrier, which effectively prevents cold draughts and ensure comfortable heating inside the door.

3. High and low speed- with wireless Remote Control can meet the needs of various environments.

4. With over-heated protector in heater and Motor, effectively protecting and energy saving under normal use.
5. Warm air 30 seconds delay until the PTC heater has cooled down, efficiently extending product working lifetime.

MODEL	Product Size (mm)	Voltage (V ~ Hz)	Motor Power (W)	Heater Power (KW)	Air Speed (M/S)	Air Volume (m3/h)	Net Weight (Kg)	Noise level (dB)
RM-1209S-D/Y5G	900x190x260	220v ~~50Hz	<160	6 / 4 /2	8.5-9.5	1200	13.5	57
RM-1212S-D/Y5G	1200x190x260		<200	8 / 5 /3		1700	16	58
RM-1215S-D/Y5G	1500x190x260		<230	10 / 7 /3		2200	18.5	59
RM-1209S-3D/Y5G	900x190x260	380v ~~50Hz	<160	6 / 4 /2	8.5-9.5	1200	13.5	57
RM-1212S-3D/Y5G	1200x190x260		<200	8 / 5 /3		1700	16	58
RM-1215S-3D/Y5G	1500x190x260		<230	10 / 7 /3		2200	18.5	59
RM-1218S-3D/Y5G	1800x190x260		<300	12 / 8 /4		2700	24	60

What's Air Curtain?
Theodoor Air curtain is installed above the entryway of store, restaurant, hotel...etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.
Air Curtain is a good partner with air conditioner, keep the indoor cool air more efficiency. The invisible air door which maintaining clean and fresh air for the indoor environment.

Why Choose Us?

Experience: More than 22 years manufacture & export experience. More than 100 models air curtain, suitable for different environments.

Engineer: Professional R&D and engineer teams focus on Air curtain.

Machinery & technology: Advanced mould machines and equipments ensure products performance and reliability.

Materials and Quality: At every stage, from raw materials to the end products we insist on results: safety, efficiency, energy conservation and environmental protection, and our rigorous testing ensures that we reach standards higher than similar products. We want consumers to depend on the precision and reliability of our Air Curtain machinery.

Quality control: 100% product performance testing.

Cost saving: We provide long-life and high reliability air curtains with excellent quality and better performance, resulting in increased cost saving

Feedback customers queries promptly: Customers are always given quick support.
