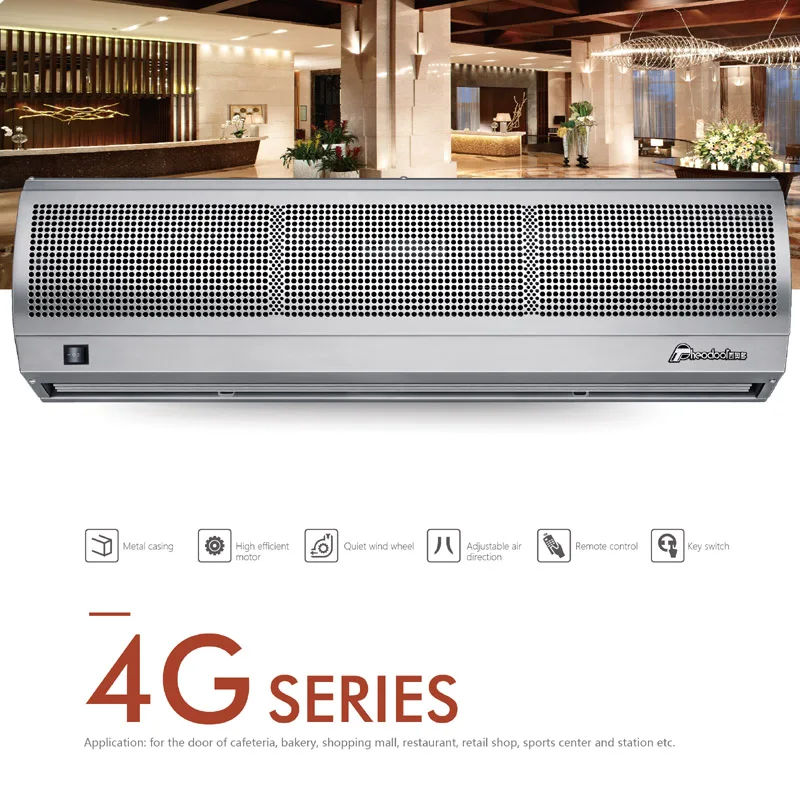

Full metal (or stainless steel) shell with super thin body design, easy clean and never rusty.
Safe & Reliable
Triple Security Protection: Thermal protector, varistor and fuse protection.
Automatic postpone safety protection when power heating off.
High performance and efficiency
Heating function can be selected in 3 power levels. The PTC heater is uncharged, high performance, safe, prompt temperature rise, low wind resistance and long using life. The optimized fan wheel provides stable & even air flow with low noise operation.
Easy operation
Updated remote control and button switch; Auto-shift of cold & hot wind by remote control, with High/Low air velocity.
SPECIFICATIONS:
Model
Volt/frequency (v/hz)
Size (mm)
Length (mm)
Air velocity (m/s)
Air volume (m3/h)
Noise (dB)
Power (w)
Net weight
FM-1209S2
220v/50-60hz
900x190x230
900
9-11
1400
55
160
10.5
FM-1210S2
220v/50-60hz
1000x190x230
1000
9-11
1600
56
180
11
FM-1212S2
220v/50-60hz
1200x190x230
1200
9-11
1900
56
190
13.5
FM-1215S2
220v/50-60hz
1500x190x230
1500
9-11
2500
57
230
16.5
FM-1218S2
220v/50-60hz
1800x190x230
1800
9-11
3200
58
300
19.5
FM-1220S2
220v/50-60hz
2000x190x230
2000
9-11
3600
59
350
22.5
FM-1509S2
220v/50-60hz
900x219x263
900
9-13
2000
67
230
15
FM-1512S2
220v/50-60hz
1200x219x263
1200
9-13
2800
69
350
19
FM-1515S2
220v/50-60hz
1500x219x263
1500
9-13
3600
71
430
23
FM-1518S2
220v/50-60hz
1800x219x263
1800
9-13
4400
73
450
27

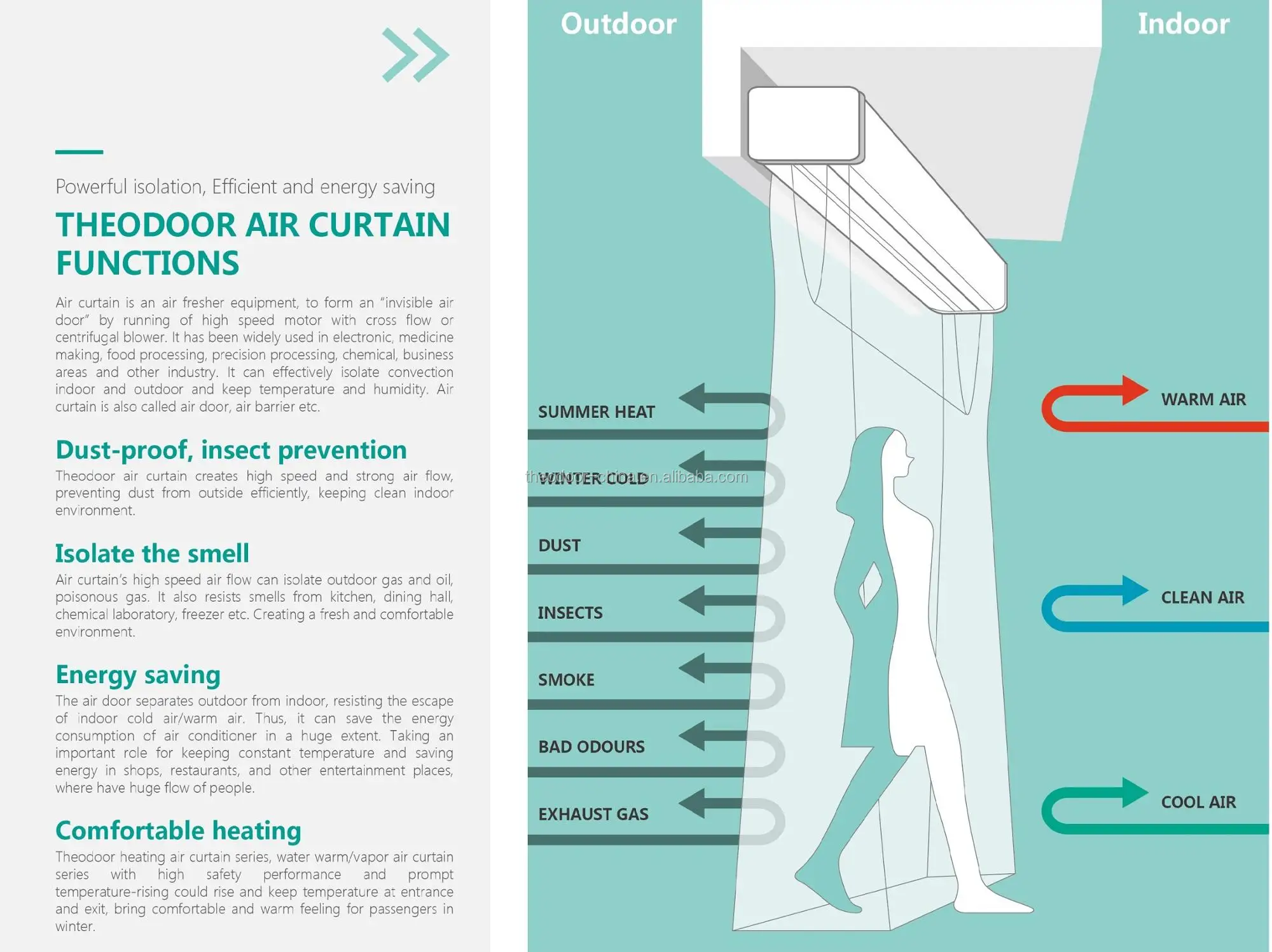

What is Air Curtain?
Theodoor Air curtain is installed above the entryway of store, restaurant, hotel...etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.
Packaging & Shipping
Company Information
National craftsman, Originality manufacturing

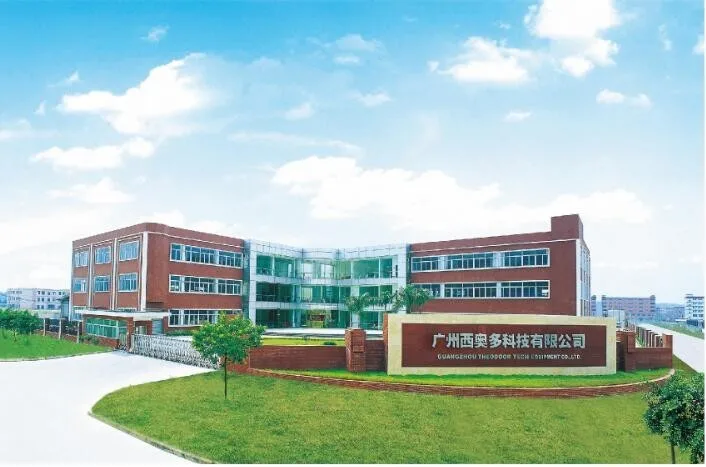

Theodoor industrial park covers the area of 30,000 square meters. We had applied the most advanced industrial equipments and detecting instruments. There are automatic operation assembly lines, CNC production and executed implementation of ERP management, 6S management and strict quality system management.
Theodoor strives for design aesthetics, power performance, material testing, research and development, technology and performance. Select new security, environmental protection, wear-resistant materials, use advanced manufacturing technique to extend product lifetime, to ensure that products can be operated more secure, environmentally friendly (non-toxic, odorless, fire-resistant) in a variety of conditions.
From “MADE IN CHINA” to “CREATED IN CHINA”
Theodoor has acquired National Invention Patents, Utility Model Patents and Design Patents for more than 80 items, leading the quality and performance of product upgrading in the industry. The company and products had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications. Over 18 year’s originality manufacturing, Theodoor has created worldwide quality products.
The spirit of enterprise
Profession, Attention, Concentration!
Enterprise mission
The perfect combination of technology and application, which making the world become a green and better place to live.
Quality concept
Inheritance of Germanyrigorous and precise style, quality first.
Business philosophy
Innovation, creation, share, win-win! Stick to original creation, continuous innovation.
Market concept
Theodoor committed to research and development, to meet the global needs of individual users. Technology and European synchronization, rapid response to customer needs. Use the Theodoor product as the customer initial and final choice.
Management philosophy
Theodoor not only treats employees fairly, but also treats human resources as the most valuable capital of the enterprise, trying to recruit talented people and shaping the learning organization.
